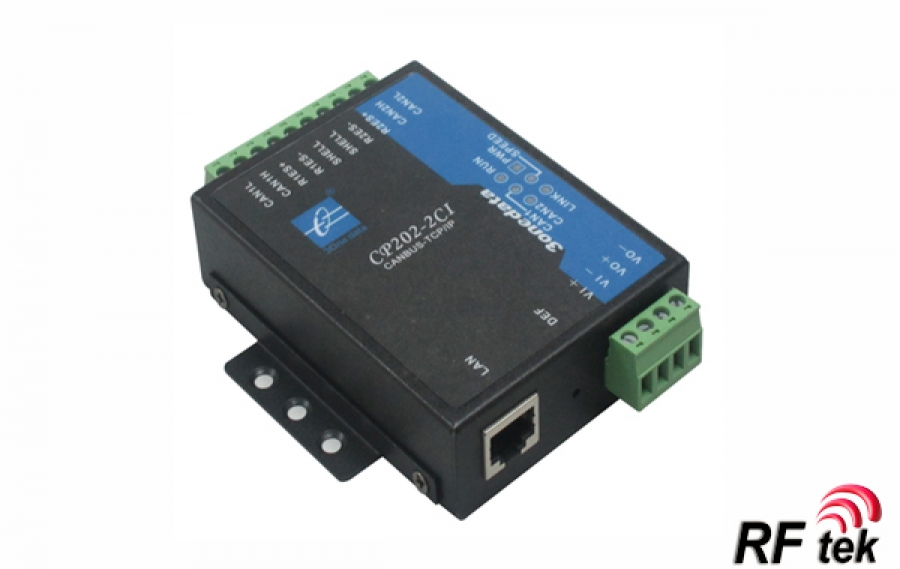

CP202-2CI is an industrial CAN-bus to Ethernet Converter built-in with two CAN-bus ports and one Ethernet port, with which the user can easily realize interconnection between CAN-bus and Ethernet, expanding the coverage of CAN-bus network. The CAN port communication rate is 5K~1000Kbps, with TCP Server, TCP Client, and UDP working modes, and supports as many as 3 connections, gateway and cross-layer routing communication, IP address or domain name for easy access by user, etc. The host is easily and centrally managed. It is widely applied in PLC control and management, automatic control of buildings, health care automation system, measuring instrument and environment and power monitoring system, etc.
◎ High-speed 32-bit processor;
◎ 10M/100M adaptive Ethernet interface
◎ Support AUTO MDI/MDIX, cross-over or straight-through network cable connection
◎ Two CAN ports
◎ CAN port baud rate 5K~1000Kbps;
◎ Support TCP Sever, TCP Client, UDP modes
◎ Support ARP, ICMP, UDP, TCP, IP, HTTP, DHCP, DNS protocols
◎ Support cross gateway, router communication
◎ Support static and dynamic IP address acquisition
◎ Support heartbeat timeout and closing timeout
◎ Support automatic connection recovery after disconnection, and build a reliable TCP connection
◎ Support flexible CAN port data frame setting, satisfying various subpackage requirements of customers
◎ Support 9-24VDC wide power supply range
◎ Support non-polar power supply
◎ Support IP40 protection
◎ Working temperature: -40℃ - 75℃
◎ Support wall-mounted installation
